Core Energy-Saving Advantage:
Melting 1,000 kg of molten aluminum consumes only approximately
50 m³ of natural gas. The system delivers over 35% energy savings
compared with traditional regenerative furnaces and over 50%
compared with single-burner furnaces.
Product Showcase & Industrial Applications

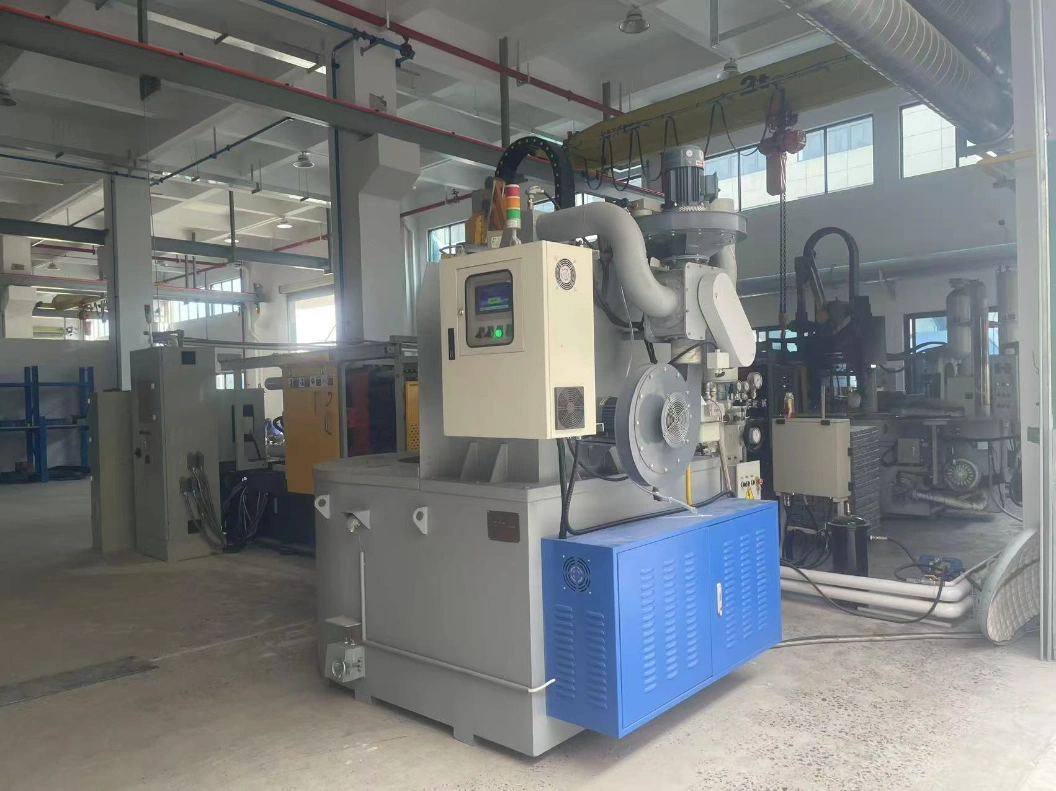

Front View & Structure

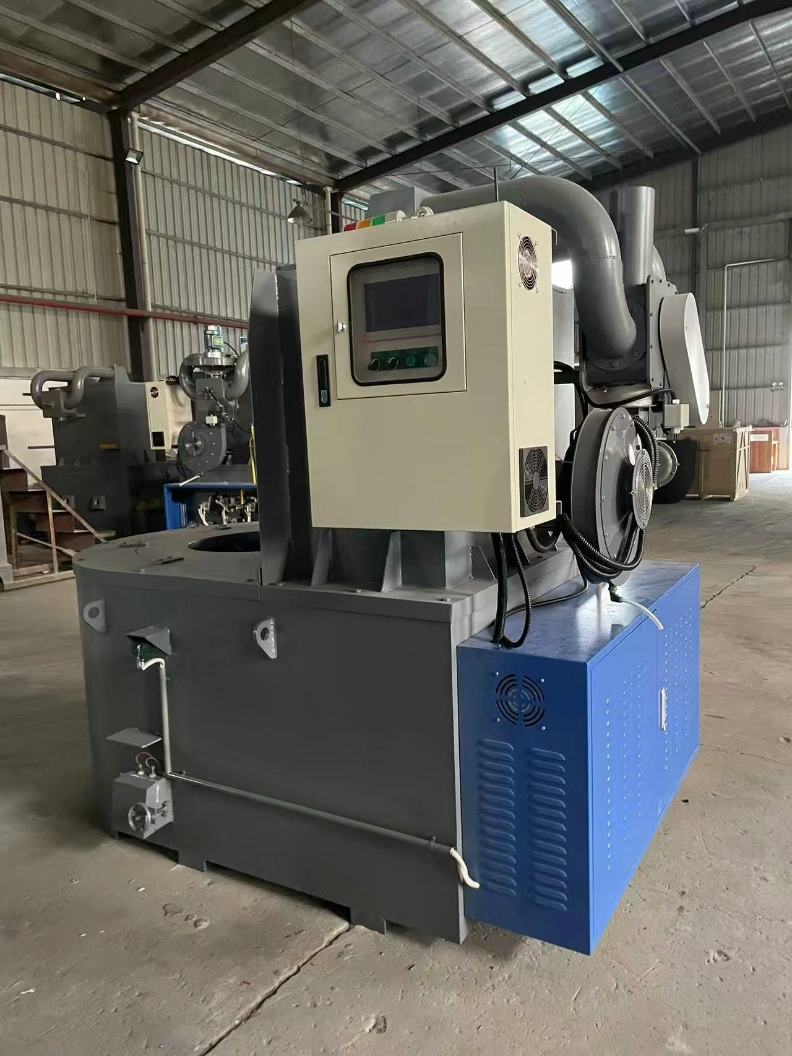

PLC Control Cabinet

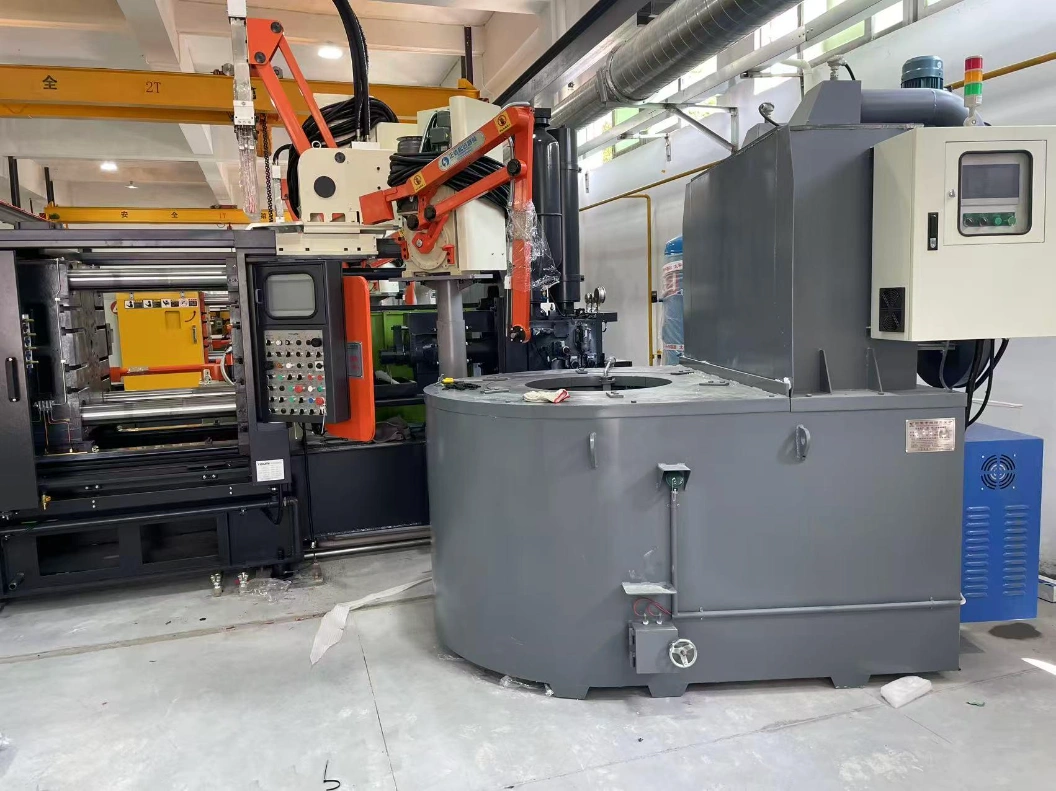

Die-Casting Integration

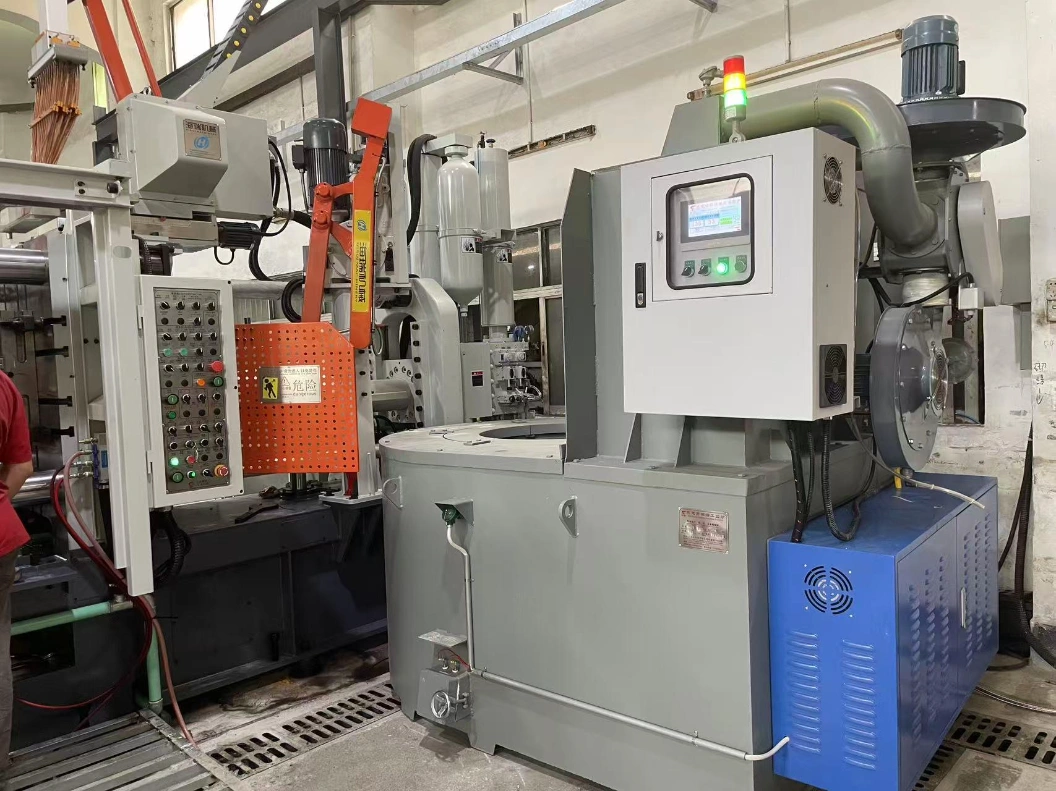

Robotic Ladling Automation

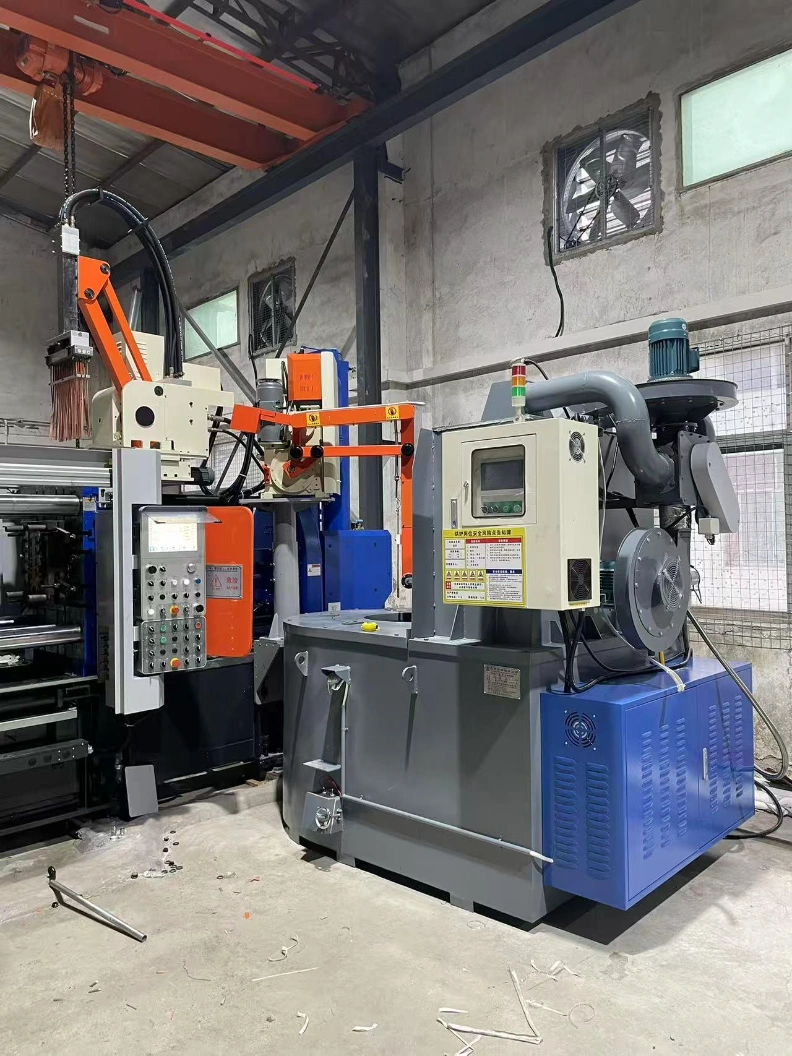

Automated Workshop Operation

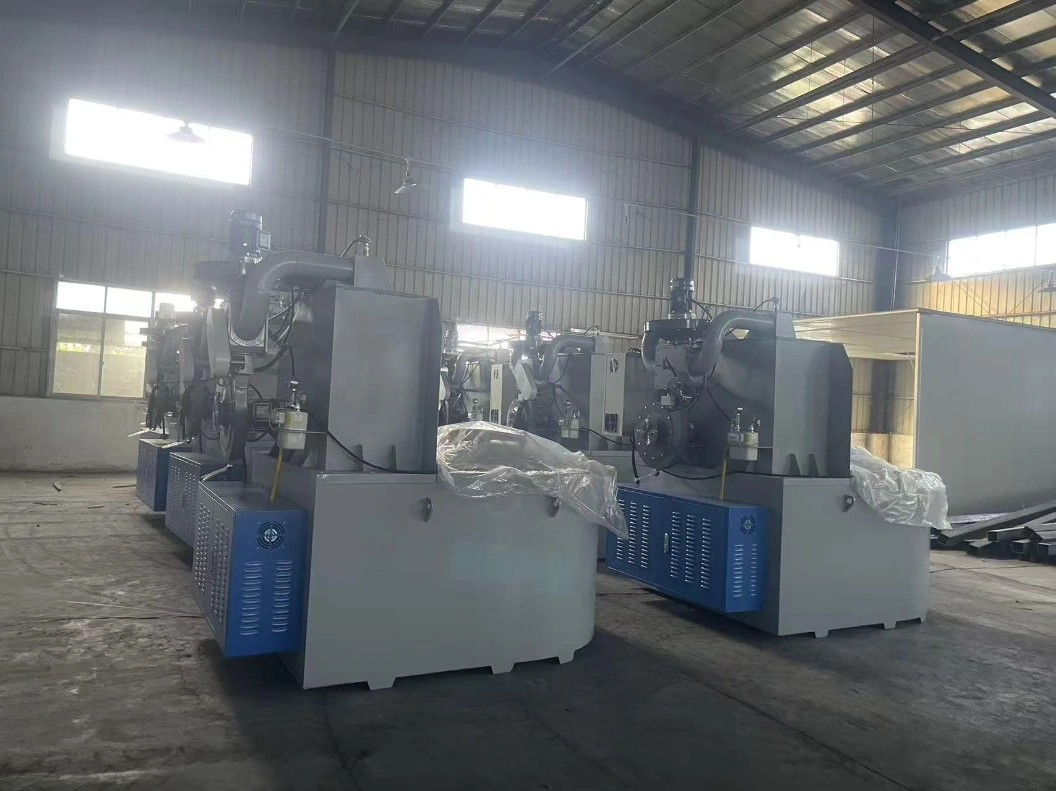

Foundry Workshop Batch Setup
Technical Description
The Huirong Dual Heat Storage Energy-Saving Gas Furnace is designed for efficient melting and holding of molten aluminum in die-casting and foundry production environments. Its dual heat storage hot air circulation system improves thermal efficiency while supporting automatic combustion control, PLC-based monitoring, safety protection and stable furnace operation.
Performance Features
- Dual Heat Storage Hot Air Circulation: Utilizes a dual heat storage hot air circulation waste-heat heating system for ultra-high thermal efficiency. Supports dual-stage fire automatic switching with independent control and stable operational performance.
- Precision Combustion Control: Equipped with dual electromagnetic safety mechanisms and a PID temperature automatic compensation air/gas distribution system. Features a full touch-screen PLC digital automatic proportional output, supporting full-process computer remote real-time monitoring and adjustment.
- Industry-Leading Energy Savings: Requires only approximately 50 m³ of gas to melt 1,000 kg of aluminum. Provides over 35% energy savings compared with traditional regenerative furnaces and over 50% compared with single-burner furnaces. High efficiency enables furnace body cost recovery within 6 months of super energy-saving operation.
- Comprehensive Safety Protection: Manufactured strictly according to Huirong industrial furnace standards. Features automatic molten metal leakage alarm detection, abnormal gas cut-off alarm, distribution cabinet overheat protection and current phase-loss automatic protection.
- Zero Smoke Emissions & Eco-Friendly: Zero smoke emission during furnace operation with exhaust gas temperature kept below 55°C. Significantly improves workshop working conditions and is designed to comply with European and American environmental emission standards.
- Operating Parameters: Maximum heating gas flow rate varies by furnace model, while total electrical power consumption is specified according to the equipment configuration shown below.
Equipment Specifications
| Model | HR300 | HR400 | HR500 | HR600 | HR800 | HR1000 | HR1200 | HR1500 | HR1700 | HR2000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Suitable for Die-Casting Model | 180–220T | 280–300T | 300–350T | 350–400T | 500–650T | 800–1000T | 1000–1250T | 1250T–1650T | 1650T | 2000T |
| Crucible (mm) | Φ720 × H600 | Φ720 × H740 | Φ780 × H750 | Φ880 × H750 | Φ880 × H890 | Φ1050 × H830 | Φ1050 × H1050 | Φ1060 × H1200 | Φ1050 × H1450 | Φ1280 × H1050 |
| Holding Capacity (kg) | 300 kg | 400 kg | 500 kg | 600 kg | 800 kg | 1000 kg | 1200 kg | 1500 kg | 1700 kg | 2000 kg |
| Melting Rate (kg/h) | 120 kg/h | ≈140 kg/h | ≈170 kg/h | ≈200 kg/h | ≈300 kg/h | ≈360 kg/h | ≈420 kg/h | ≈530 kg/h | ≈580 kg/h | ≈680 kg/h |
| Max Natural Gas Flow Rate (m³/h) | 7–10 m³/h | 7–12 m³/h | 7–12 m³/h | 7–12 m³/h | 12–18 m³/h | 18–23 m³/h | 20–28 m³/h | 28–35 m³/h | 33–38 m³/h | 38–43 m³/h |
| Gas Inlet Pressure | Natural Gas / LPG: 1 Bar – 0.1 MPa | |||||||||
| Natural Gas Pipe Diameter | DN25 | |||||||||
| Power Supply | 3-400V + N + G, 50–60Hz | |||||||||
| Electric Power Consumption | 2 kW | 4 kW | 5 kW | |||||||
| Dimensions (L × W × H m) | 2.35 × 1.45 × 2.2 | 2.35 × 1.45 × 2.2 | 2.45 × 1.55 × 2.5 | 2.55 × 1.65 × 2.5 | 2.55 × 1.65 × 2.6 | 2.7 × 1.8 × 2.6 | 2.7 × 1.8 × 2.6 | 2.7 × 1.8 × 2.7 | 2.7 × 1.8 × 2.8 | 3 × 2.1 × 2.7 |
| Ladling Height (mm) | 1000 | 1100 | 1100 | 1100 | 1250 | 1200 | 1470 | 1570 | 1670 | 1720 |
| Equipment Weight | 2.8 T | 3.0 T | 3.2 T | 3.6 T | 4.2 T | 5.2 T | 6.0 T | 6.8 T | 7.3 T | 8.0 T |
HR300
Suitable for Die-Casting Model
180–220T
Crucible
Φ720 × H600 mm
Holding Capacity
300 kg
Melting Rate
120 kg/h
Max Natural Gas Flow
7–10 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
2 kW
Dimensions
2.35 × 1.45 × 2.2 m
Ladling Height
1000 mm
Equipment Weight
2.8 T
HR400
Suitable for Die-Casting Model
280–300T
Crucible
Φ720 × H740 mm
Holding Capacity
400 kg
Melting Rate
≈140 kg/h
Max Natural Gas Flow
7–12 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
2 kW
Dimensions
2.35 × 1.45 × 2.2 m
Ladling Height
1100 mm
Equipment Weight
3.0 T
HR500
Suitable for Die-Casting Model
300–350T
Crucible
Φ780 × H750 mm
Holding Capacity
500 kg
Melting Rate
≈170 kg/h
Max Natural Gas Flow
7–12 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
2 kW
Dimensions
2.45 × 1.55 × 2.5 m
Ladling Height
1100 mm
Equipment Weight
3.2 T
HR600
Suitable for Die-Casting Model
350–400T
Crucible
Φ880 × H750 mm
Holding Capacity
600 kg
Melting Rate
≈200 kg/h
Max Natural Gas Flow
7–12 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
4 kW
Dimensions
2.55 × 1.65 × 2.5 m
Ladling Height
1100 mm
Equipment Weight
3.6 T
HR800
Suitable for Die-Casting Model
500–650T
Crucible
Φ880 × H890 mm
Holding Capacity
800 kg
Melting Rate
≈300 kg/h
Max Natural Gas Flow
12–18 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
4 kW
Dimensions
2.55 × 1.65 × 2.6 m
Ladling Height
1250 mm
Equipment Weight
4.2 T
HR1000
Suitable for Die-Casting Model
800–1000T
Crucible
Φ1050 × H830 mm
Holding Capacity
1000 kg
Melting Rate
≈360 kg/h
Max Natural Gas Flow
18–23 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
4 kW
Dimensions
2.7 × 1.8 × 2.6 m
Ladling Height
1200 mm
Equipment Weight
5.2 T
HR1200
Suitable for Die-Casting Model
1000–1250T
Crucible
Φ1050 × H1050 mm
Holding Capacity
1200 kg
Melting Rate
≈420 kg/h
Max Natural Gas Flow
20–28 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
4 kW
Dimensions
2.7 × 1.8 × 2.6 m
Ladling Height
1470 mm
Equipment Weight
6.0 T
HR1500
Suitable for Die-Casting Model
1250T–1650T
Crucible
Φ1060 × H1200 mm
Holding Capacity
1500 kg
Melting Rate
≈530 kg/h
Max Natural Gas Flow
28–35 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
5 kW
Dimensions
2.7 × 1.8 × 2.7 m
Ladling Height
1570 mm
Equipment Weight
6.8 T
HR1700
Suitable for Die-Casting Model
1650T
Crucible
Φ1050 × H1450 mm
Holding Capacity
1700 kg
Melting Rate
≈580 kg/h
Max Natural Gas Flow
33–38 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
5 kW
Dimensions
2.7 × 1.8 × 2.8 m
Ladling Height
1670 mm
Equipment Weight
7.3 T
HR2000
Suitable for Die-Casting Model
2000T
Crucible
Φ1280 × H1050 mm
Holding Capacity
2000 kg
Melting Rate
≈680 kg/h
Max Natural Gas Flow
38–43 m³/h
Gas Inlet Pressure
Natural Gas / LPG: 1 Bar – 0.1 MPa
Natural Gas Pipe Diameter
DN25
Power Supply
3-400V + N + G, 50–60Hz
Electric Power Consumption
5 kW
Dimensions
3 × 2.1 × 2.7 m
Ladling Height
1720 mm
Equipment Weight
8.0 T
Frequently Asked Questions (FAQ)
Q: How does the dual heat storage system improve furnace efficiency?
A: The furnace uses a dual heat storage hot air circulation
system to recover and reuse heat, improving thermal efficiency
while supporting automatic combustion switching and stable
furnace operation.
Q: How much natural gas is required to melt 1,000 kg of aluminum?
A: The supplied technical specification states that melting
1,000 kg of aluminum requires approximately 50 m³ of natural gas.
Q: What furnace models are available?
A: The available models in the supplied specification are
HR300, HR400, HR500, HR600, HR800, HR1000, HR1200, HR1500,
HR1700 and HR2000.
Q: Can the furnace be integrated with die-casting equipment?
A: The supplied application materials show the furnace used
in die-casting machine integration and automated workshop
configurations.
Q: What information should I provide for a technical proposal?
A: Please provide your target die-casting machine tonnage,
required holding capacity, production requirements, available
workshop space and fuel or gas supply conditions so the
appropriate furnace configuration can be evaluated.
