Huirong Automatic Molten Aluminum Refining & Degassing Machine

Huirong Automatic Molten Aluminum Refining & Degassing Machine

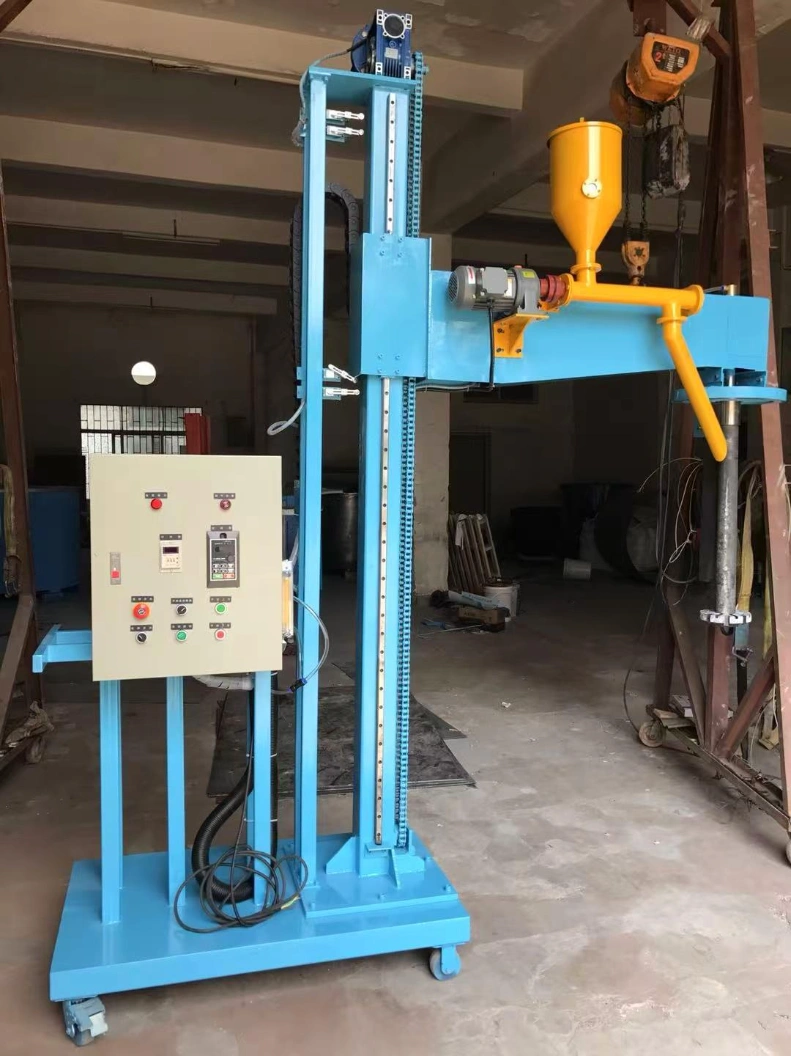

Huirong molten aluminum refining and degassing machine with automatic flux feeding hopper
Powder Feeding Hopper

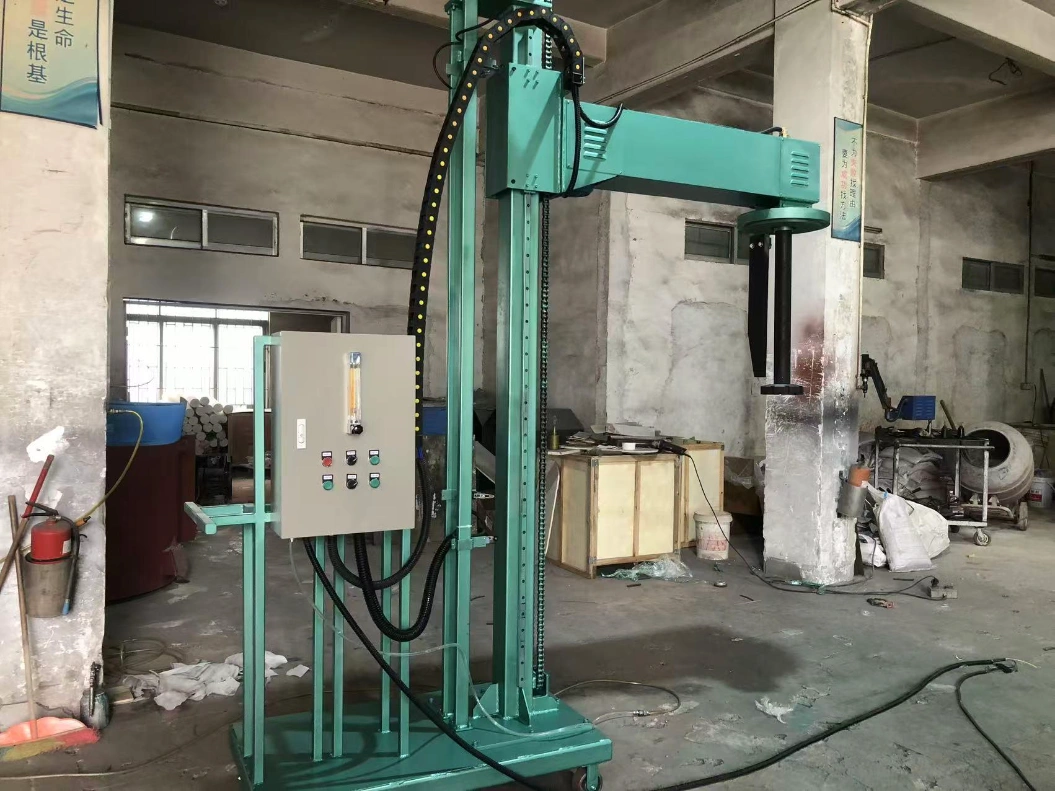

Huirong PLC controlled molten aluminum degassing and refining unit with automatic lifting mechanism
PLC Lifting Mechanism

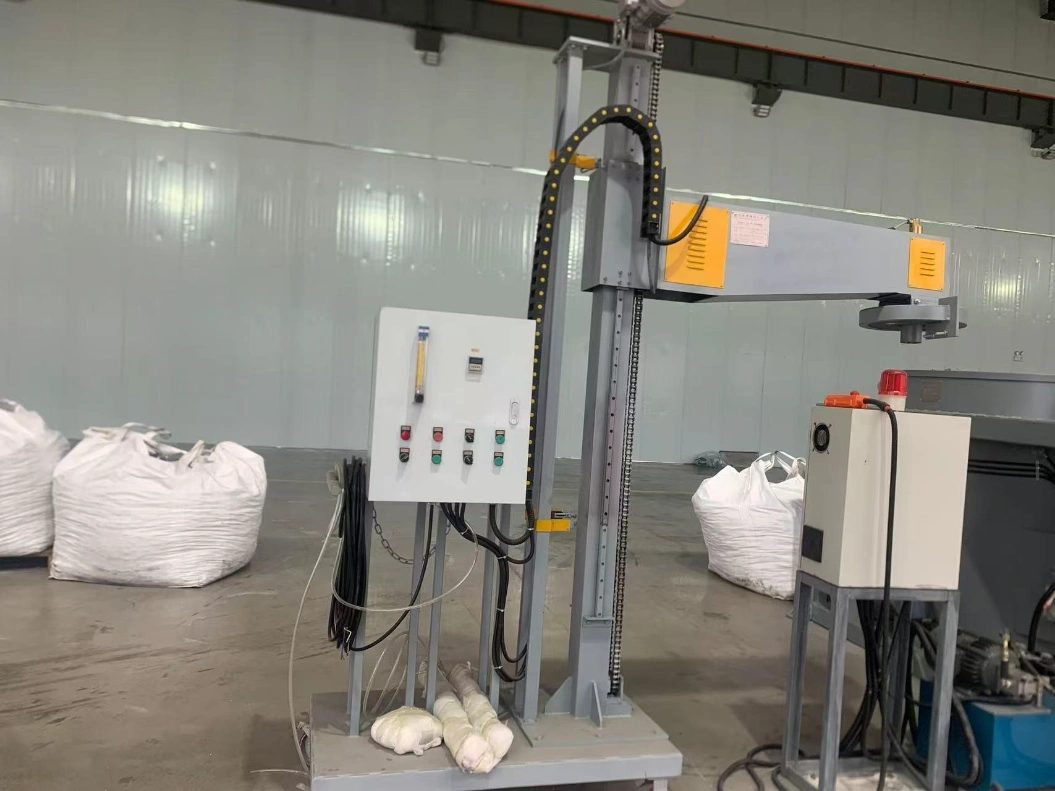

Huirong industrial aluminum liquid refining degasser equipment with touchscreen control panel
Touchscreen Control Box

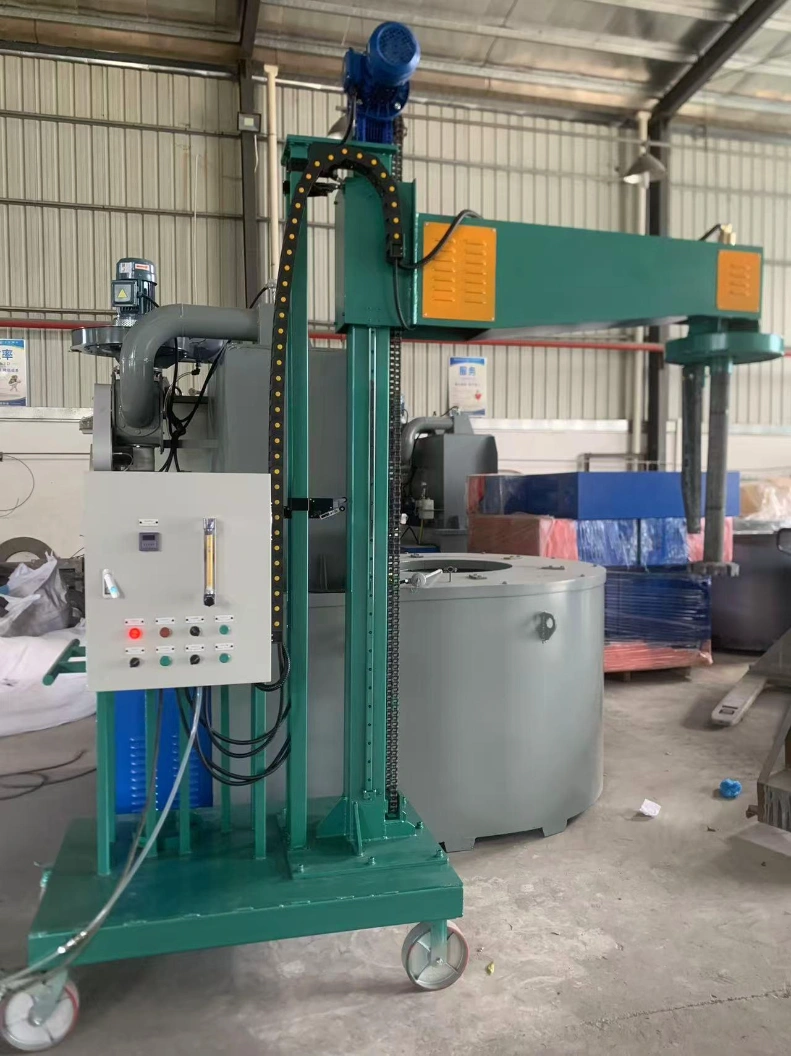

Huirong mobile molten aluminum refining and degassing machine for foundry degassing process
Mobile Base Frame

Technical Description

The Huirong Automatic Molten Aluminum Refining & Degassing Machine is designed with intelligent fault reminders and safety alarms. This equipment fully automates the degassing and refining process, significantly reducing labor intensity and minimizing manual errors. Operators can easily set and adjust degassing duration, refining time, rotation speed, flux injection speed, as well as automatic lifting and lowering delay settings.

Key Performance Features

  • Automatic Head & Baffle Lifting: Supports both automatic and manual control for raising and lowering the machine head and protective baffle.
  • Variable Speed Spindle: Frequency converter enables precise spindle speed adjustment within the range of 0–800 RPM.
  • Dual Gas Flow Adjustment: Features two independent flow settings for flexible gas control during treatment.
  • Safety Alarms: Built-in sound and light alarms for abnormal gas pressure with automatic system shutdown upon gas shortage.
  • Quantitative Flux Feeding: Manual/automatic speed adjustment for refining powder feeding with automated start and stop functions.
  • Customizable Process Parameters: Independent time settings for refining and degassing with automated process switching.
Frequently Asked Questions (FAQ)
Q: How does the rotary degassing and flux injection process work?
A: Inert gas (such as argon or nitrogen) and refining powder are injected through the rotating rotor into the molten aluminum. The high-speed rotation disperses the gas into micro-bubbles, effectively removing hydrogen inclusions and impurities from the melt.
Q: Can the spindle speed and degassing time be adjusted?
A: Yes, the spindle speed is variable between 0–800 RPM via frequency converter, and both degassing and refining duration can be precisely configured through the PLC touchscreen interface.
Q: What safety features are built into this machine?
A: The equipment includes integrated sound and light alarms for abnormal gas pressure and automatically halts operation if gas supply is interrupted, ensuring safe foundry operations.

Send an Inquiry

Tell us about your molten metal capacity, degassing requirements, workshop setup, and equipment needs. Huirong can provide custom technical configurations and solution recommendations.

Direct Email huirong.furnace@gmail.com
Need the Right Aluminum Degassing Equipment for Your Foundry?

Contact Huirong for degasser selection, technical specs, automated foundry integration, and project quotations.
