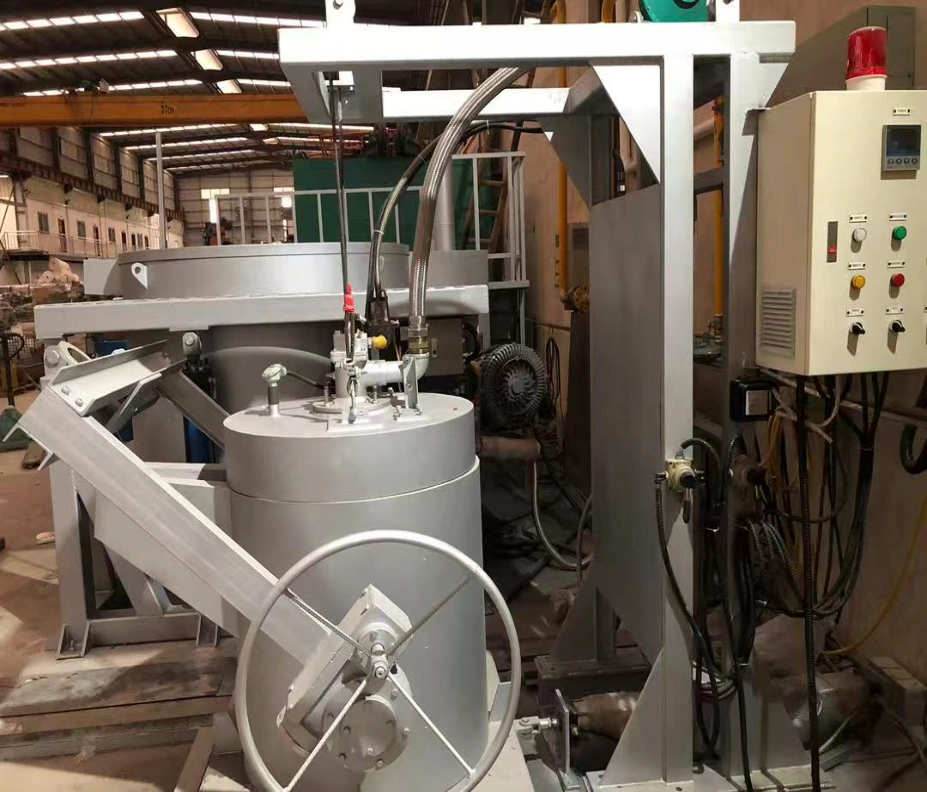

Transfer Ladle & Preheater System

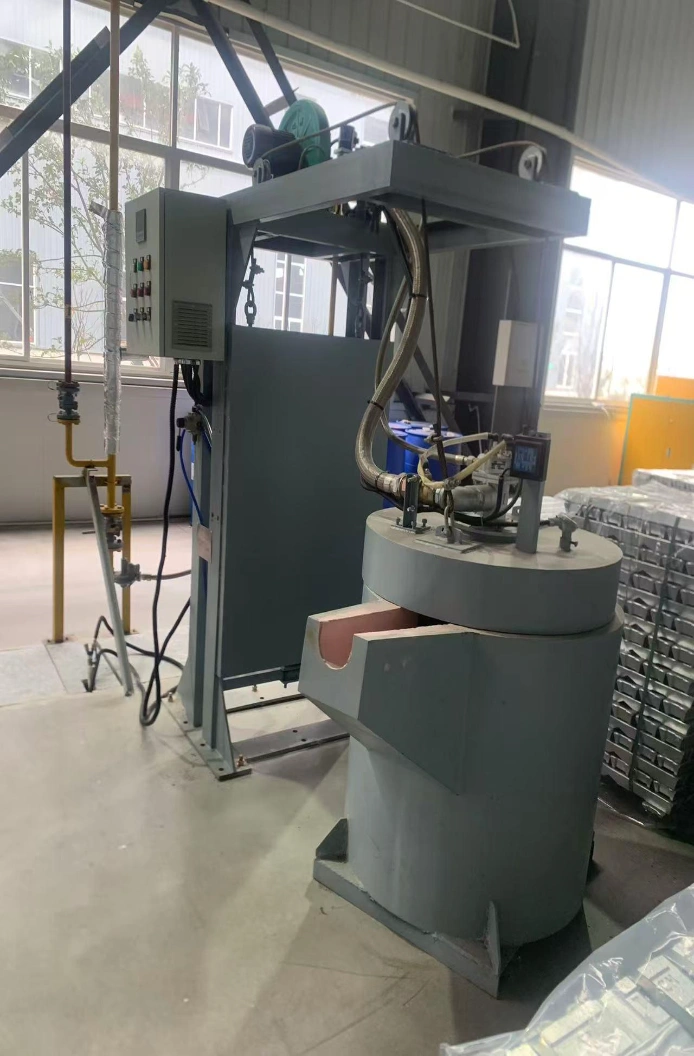

Automatic Baking Device

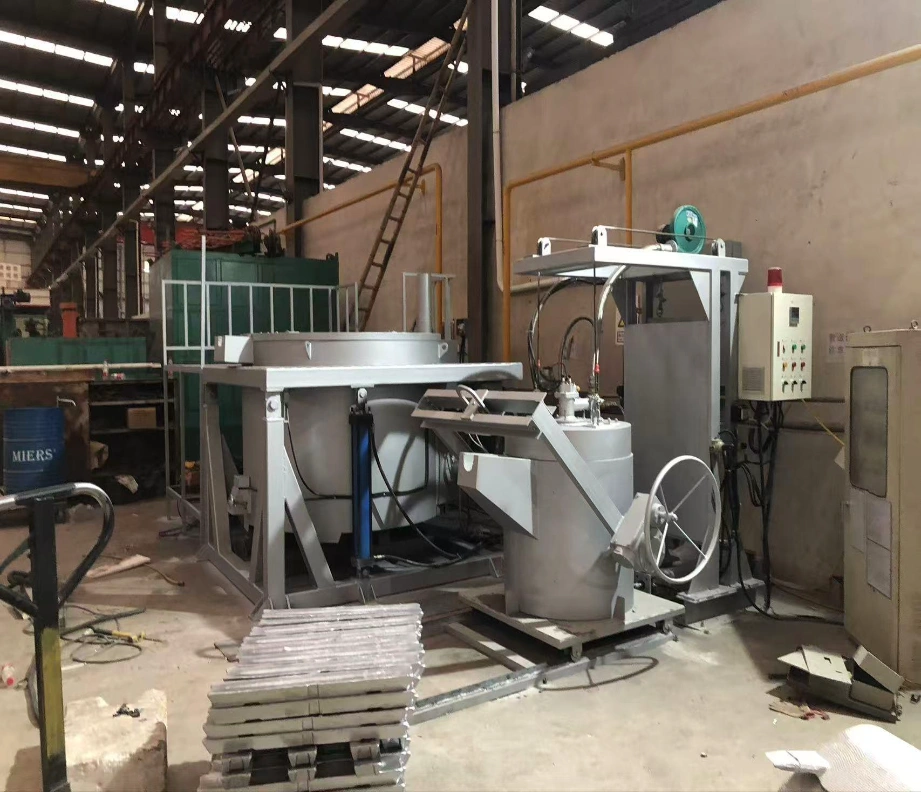

Foundry Installation Overview
Product Overview
The Huirong Molten Aluminum Transfer Ladle and Baking Station is engineered for short-distance molten aluminum transport within die-casting and foundry workshops. The system performs refining and degassing processes during transit, maintaining temperature stability and preventing thermal drop during operation.
Performance Features
- Thermal Insulation: Features imported nano-board insulation layers providing excellent thermal insulation performance with minimal natural cooling.
- Non-Stick Interior: Made of non-stick aluminum material, anti-corrosion, durable, resistant to thermal shock, and easy to maintain.
- Heavy-Duty Structure: Structural design suitable for forklift transportation and shop-floor maneuvering.
- Flexible Fuel Options: Compatible with natural gas, petroleum gas, or electric heating options.
- Automated Preheating: Independent control system with automatic lift and lower mechanisms, built-in ignition, and flame detection safety alarms.
Equipment Specifications
| Model | Power (kW) | Capacity (kg) | Toaster Size (mm) | Shipping Package Size (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | I | II | III | |||
| HR-300 | 35 kW | 250 kg | 1700 mm | 1150 mm | 760 mm | 760 mm | 760 mm | 760 mm | 760 mm |
| HR-500 | 60 kW | 350 kg | 1700 mm | 1150 mm | 760 mm | 760 mm | 760 mm | 760 mm | 810 mm |
| HR-800 | 80 kW | 700 kg | 1700 mm | 1150 mm | 760 mm | 760 mm | 760 mm | 760 mm | 860 mm |
| HR-1000 | 100 kW | 900 kg | 1800 mm | 1150 mm | 760 mm | 1050 mm | 1050 mm | 1050 mm | - |
Frequently Asked Questions (FAQ)
Q: What metals can be transported using this transfer ladle?
A: This transfer ladle is specialized for liquid molten non-ferrous metals, primarily molten aluminum alloys (such as A356, ADC12), pure copper, brass, bronze, zinc, and lead during internal foundry transport.
Q: Why choose an automatic ladle baking station over manual heating?
A: An automatic ladle baking station provides controlled, uniform preheating, effectively preventing thermal shock, moisture explosions, and heat loss. It significantly reduces manual labor and enhances safety in high-temperature foundry operations.
Q: How do I choose between Electric and Gas heating sources?
A: Electric heating provides precise temperature control with zero emissions and lower noise. Natural Gas or LPG heating delivers faster preheating speed and lower unit fuel cost for large-capacity foundries.
